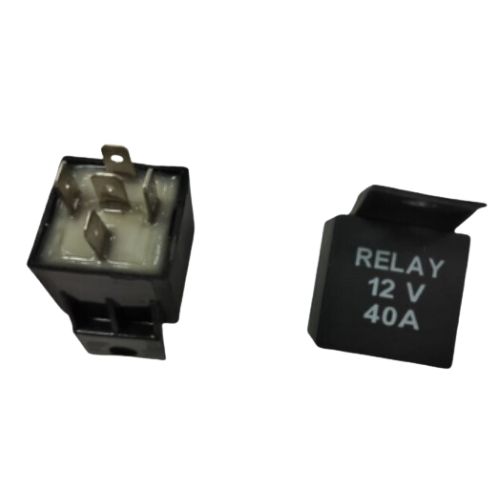

RELAY 5 PIN – Multi-Function Power Relay for Electric Scooters

Take control of your electric scooter’s power management with the RELAY 5 PIN, a high-efficiency switching component designed to handle complex circuit requirements with ease. Whether you’re upgrading your EV’s headlight system, integrating additional electronics, or optimizing your battery-controller connections, this 5-pin relay ensures smooth, safe, and reliable operations.

Ideal for electric scooters, e-bikes, loaders, and custom EV builds, the 5-pin relay provides both normally open (NO) and normally closed (NC) contact points — allowing for greater flexibility in how you configure your scooter’s electrical system. Its compact size, solid build quality, and heat-resistant casing make it the top choice for both DIY enthusiasts and professional EV technicians.

Key Features

• 5-Pin Design with NC & NO Terminals
  Offers both Normally Open (NO) and Normally Closed (NC) circuits for versatile wiring options.
• Heavy-Duty Switching
  Built to manage current loads up to 30A with ease, protecting switches and control units from overload.
• Universal EV Compatibility
  Works with most electric scooters, e-bikes, and EV loaders available in the market.
• Thermally Protected Housing
  Heat-resistant ABS plastic shell ensures consistent performance in demanding conditions.
• Copper Alloy Terminals
  Rust-resistant and high-conductivity pins for optimal electrical performance.

Technical Specifications

• Product Name: RELAY 5 PIN
• Type: Electromechanical Relay
• Pins: 5 (85, 86 – Coil; 30 – Common; 87 – NO; 87a – NC)
• Operating Voltage: 12V – 60V DC
• Current Rating: Up to 30 Amps
• Material: ABS Body with Copper Contacts
• Mounting: Plug-in Style
• Dimensions: Approx. 27mm x 27mm x 26mm
• Weight: ~35g
• Operating Temperature: -20°C to 85°C
• Water Resistance: Splash Resistant (IP53)

Ideal For

• Battery Cut-Off Switching
• Headlights, Indicators & Tail Lights
• Instrument Cluster & Display Activation
• Horn Systems
• Accessory Integration (USB, Fans, Chargers)

Benefits of a 5 Pin Relay

• Flexible Switching Logic
  Control two different circuits (NO & NC) from one input for smart setups.
• Prevents Overloading
  Redirects high current away from switches, protecting wiring and electronics.
• Improved System Safety
  Prevents electrical short circuits by controlling the current flow accurately.
• Smooth EV Operation
  Ensures seamless performance of lighting, motor, and safety systems.
